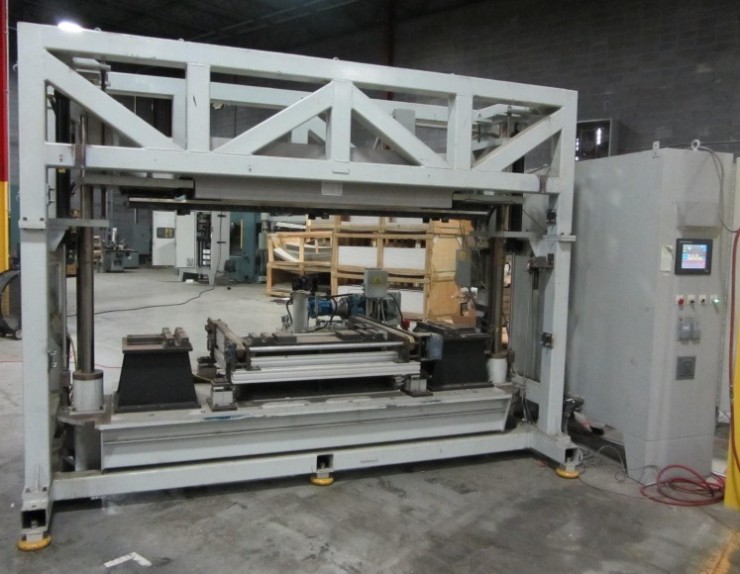

Branson 2913-L vibration welder, s/n – 00D415011

104″ x 27-1/2″ hydraulic lift table (rack & pinion)
58″ x 14″ vibration unit, has outboard supports
198# – upper tool weight, M9 driver coils
55″ vertical clearance (head is height adjustable)

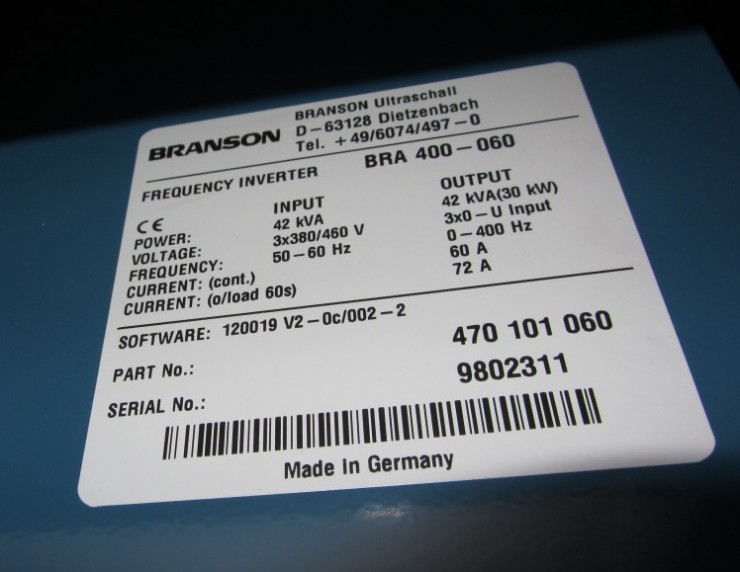

42 kVA Branson Ultraschall vibration drive,
80-120 Hz frequency range, manual & auto tune
0 – 0.160″ amplitude
Allen Bradley SLC5/04 PLC
32″ lift table stroke @ 8″/second
7-1/2 hp hydraulic pump
front & rear access doors, light curtain, finger actuator
Quickpanel 10.5″ color touch screen interface
table mounted elevating conveyor & shuttle tables
20 second dry cycle time
243,000 cycles, extremely clean, excellent condition
12′ x 5′ x 9′ high welder
13′ x 2′ x 10′ high front/rear doors
new 2000, s/n – 00D415011
