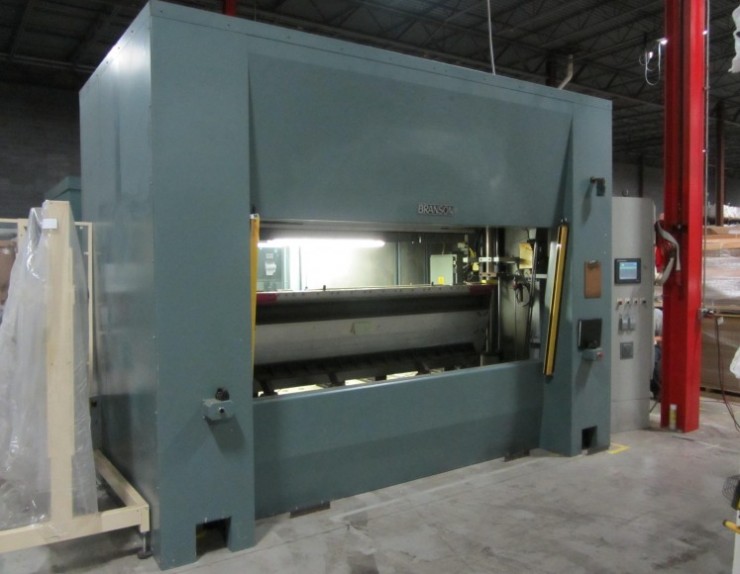

Branson 2913-L vibration welder, s/n – 00D423484

104″ x 27-1/2″ hydraulic lift table (rack & pinion)
54″ x 15″ vibration unit, has outboard supports
198# upper tool weight, M9 driver coils
55″ vertical clearance (head is height adjustable)

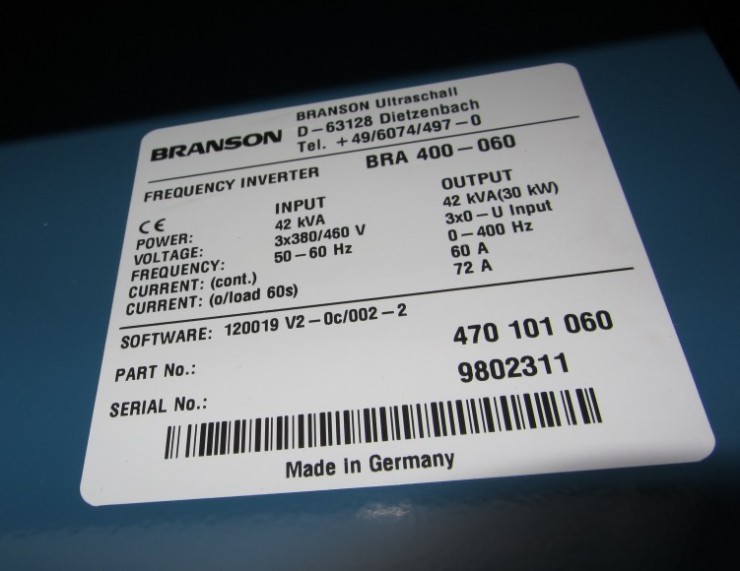

31 kVA Branson Ultraschall vibration drive
80-120 Hz frequency range, manual & auto tune
0 – 0.160″ amplitude

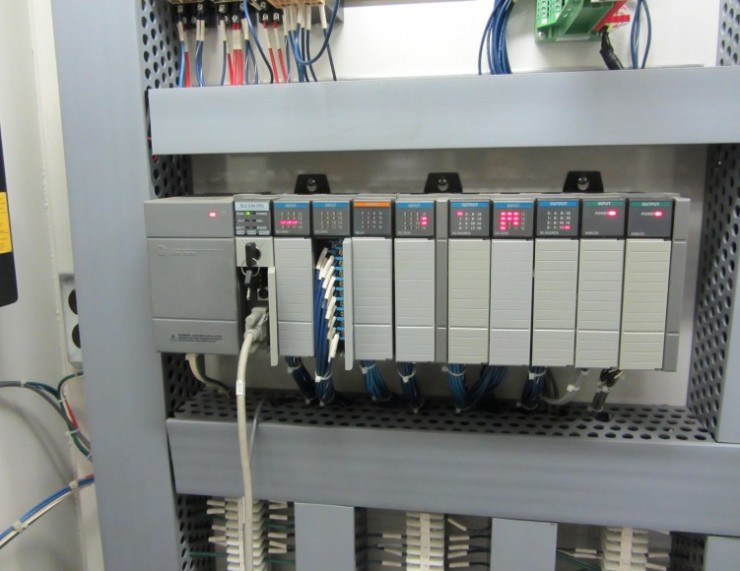

Allen Bradley SLC5/04 PLC
32″ lift table stroke @ 8″/second
7-1/2 hp hydraulic pump (external)
96″ wide clamshell fixture installed

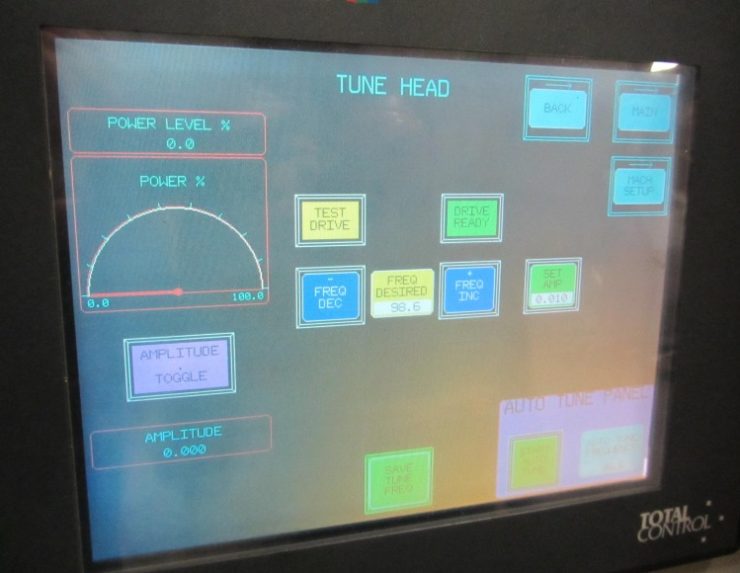

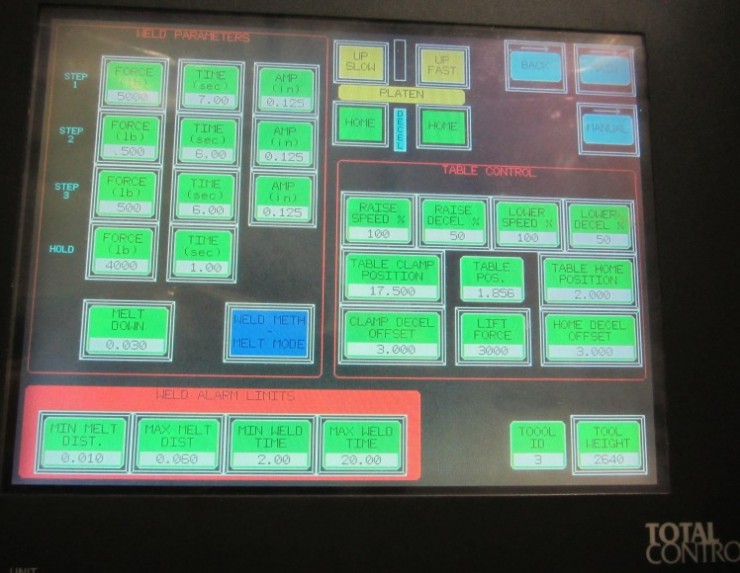

Quickpanel 10.5″ color touch screen interface
light curtain & finger actuator
20 second dry cycle time
327,000 cycles, extremely clean
new 2000, s/n – 00D423484
