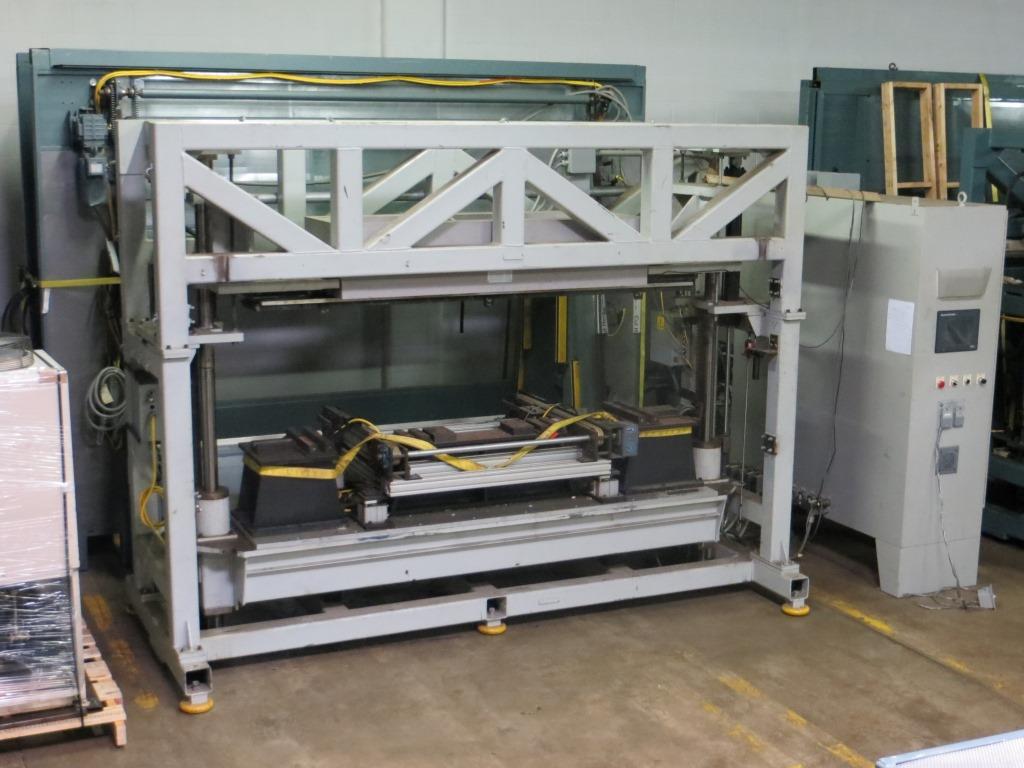

Branson (Vinton) LV-38 vibration welder, s/n – 42840
hydronamic vibration welder, weld by distance, (2) Moog 760Y919A valves, (3) sets of springs, 33-1/2″ x 19″ lift table, 20″ stroke, light curtain, finger actuators, 1994
+1 (651) 283-7444
Branson
33-1/2"" x 19"
1200 watt
Branson 2000iw 1200 watt (20 kHZ) ultrasonic welder
integrated power supply, very clean, minimal use, converter & booster, powered video on 2022/8/1
286#
Branson 2913-L vibration welder, s/n – 00D415011
80-120 Hz, 104″ x 27.5″ lift table, 31 kVA drive, 54″ x 15″ vibration unit, 286# upper tool weight, AB SLC5/04 PLC, 10.5″ touch screen, 2000, 243,000 cycles, excellent
3000 watt
Branson 3000 watt (20 kHZ) ultrasonic welder, 900 series
930M 3000 watt power supply, 931aes actuator, linear encoder for weld by distance, ECI-1 comm box, all cables, converter & booster, auto cycled
4000 watt
Branson 4000 watt (20 kHZ) ultrasonic welder, controller
8370 cycles on 2000xdt power supply with touch screen HMI, saw prototype use, need to pair with an aec2.5 actuator with linear encoder, excellent
24" x 24"
Branson HH-24 hot plate welder, s/n – 96R276532
24″ x 24″ part size, horizontal platens, hydraulic press & shuttle, Allen Bradley SLC5/03 PLC, Quickpanel Jr. HMI, has hot plate, new 1996
24" x 24"
Branson HH-24A hot plate welder, s/n – 06R605673
24″ x 24″ part size, horizontal platens, hydraulic press & shuttle, Allen Bradley SLC 5/03 PLC, Quickpanel Jr. HMI, ran 8,935 cycles on one OEM job, new 2006
24" x 42"
Branson IR-HH42A infrared welder, hydraulic, new 2008
24″ x 42″ horizontal platens, 150 amp, 16″ vertical press movement, 29″ daylight, 27″ heat platen stroke, Allen Bradley Compactlogix PLC & Panelview 700 Plus HMI
750W
Branson IRAM 750 watt plastic welding laser, 2011
750W @ 980 nm, (6) 125 watt laser banks, (27) SmartFiber optic cables, 2000X actuator (model 3.25), 3G & 3I controllers (with internal chiller), Lanco conveyor
143#
Branson M624H vibration welder, s/n – 01R455314-1
143# upper tool weight, 52″ x 29″ lift table, 55.9 hp vibration drive, 30 KW M6 weld head, AB SLC5/04 PLC, Xycom 3450 HMI, may do Compactlogix PLC retrofit, 2001
142#
Branson M624H-UH vibration welder (01R455314-2)
143# upper tool weight, 52″ x 29″ lift table, 55.9 hp vibration drive, 30 KW M6 weld head, AB SLC5/04 PLC, Xycom 3450 HMI, may do Compactlogix PLC retrofit, 2001
8#
Branson Mini-II vibration welder, s/n – 97C330434
8# upper tool weight, 7″ x 9″ part size, 9.5″ x 13.75″ lift table, 15″ pneumatic stroke, weld by distance, Proface touch screen HMI, Series 90 amplitude control, very clean, new 1997
8#
Branson Mini-II vibration welder, s/n – 99R367180
7″ x 9″ part size, 8# upper tool weight, Vectron 17 hp vibration drive, Allen Bradley SLC500 PLC, Quickpanel Jr. HMI, 1999
250 watt
Branson Radiance 3I 250 watt laser, s/n – 12R801965
250 watt plastic welding laser, (2) 125 watt (980 nm) laser banks, 2000X actuator, tower control & chiller, extra tooling, enclosure, 2012 (unused 2017 Branson 3I 500W arrives soon)
250 watt
Branson Radiance 3I 250 watt laser, s/n – 17R978703-1
2017 system (missing actuator), 3! control tower with chiller, (2) 144-100-552 125 watt laser banks, (10) fiber optic bundles, 2 sets of tooling, control cabling, chiller hoses
200 watt
Branson Radiance GLX laser banks, 2020
Ben 3.2 GLX laser banks, EDP 1004589, 5 x 80 output (maximum), 985 nm wavelength, water cooled, fiber bundles
250 watt
Branson Radiance laser banks, EDP No. 144-100-552
(6) 130 watt laser banks, 5 x 50 watt, 940 nanometer, closed loop, adjustable laser drive current, (27) fiber optic bundles, 3G & 3I controllers available, new 9/2011
2 hp
Branson SW-200 spin welder, s/n – 200CR0101583
2 hp Apex 6154 servo, 1 degree spindle orientation, 3.4″ stroke, 30″ height adjustment, 315# force, Eason 900X interface, appears excellent, cable damaged, 2001
2 hp
Branson SW-200 spin welder, s/n – 200CR0107604
powered 2019, servo faults & hmi blinks, shelved for future repair
6.8 hp
Branson SW-300 spin welder, s/n – 300CR0804501
6.8 hp servo drive, 250 – 3500 rpm, weld by rotation, collapse or absolute position, 5″ to 32″ spindle to base, 225# force, 6″ color touch screen, 2008, 5629 total cycles
42 kVA
Branson Ultraschall 42 kVA (frequency inverter), 9811489
used frequency inverter or vibration drive for sale Branson Ultraschall BRA 400-060 input: 42 kVA, 3×380/460, 50-60 Hz output: 42 kVA, 0-400 Hz, 60 – 72 amp for Branson M624H […]
52 kVA
Branson Ultraschall 52 kVA (37 kW) frequency inverter, 9905012
Branson Ultraschall 400-075 vibration drive, input 3×360/460 V, output: 0-400 Hz, 75-90 amp (search Vectron for additional 45.3 hp & 42 kVA frequency inverters)
30#
Branson VW-2 vibration welder, s/n – 98R475165
24″ x 16″ part capacity, 5 hp weld head, 6.6 hp Vectron frequency inverter, weld by distance, Allen Bradley SLC500 PLC, palm buttons, 1998, video
50#
Branson VW-4 vibration welder, s/n – 96R291194
50# upper tool weight, 34″ x 21″ motorized lift table, Commander 5 hp frequency inverter, Allen Bradley SLC5/02 PLC & DTAM Plus interface, 1996
VW-4
Branson VW-4 weld head: lamination carriers (109-100-421A) & springs
used Branson VW-4 weld head for sale 12-5/8″ wide x 6″ deep x 5-3/8″ high (6) 12-3/16″ wide x 7/8″ thick x 7-5/8″ high (12) (3) complete heads (left and […]
120#
Branson VW-8-H2 vibration welder, s/n – 06R613246 (sold)
120# upper tool weight, 58″ x 18″ part capacity, 21″ lift table stroke, Vectron 23.4 hp frequency inverter, weld by distance, AB Compulogix L32 PLC, Panelview Plus 700 interface, H2 software, 2006
Branson VW90-6 (VW-6) driver coil (sold)
Marelco Power Systems 144-100-106 driver coil 100C, 1 phase for 15 hp Branson head s/n – M-17881
10 hp
Branson VW90-6 weld head
bridge or head 10 hp springs, left set & right set lamination carriers drive coils: 109-100-434, 58-4155-00, 42-89 PEI 109-100-433, 58-4156-00, 42-89 PEI from 1992 Branson VW90-6 with 7-1/2 hp […]
15 hp
drive coils (new) – for Branson VW-6 vibration welder
Branson VW-6 15 hp driver coils (single & double coil)
900 watt
Rinco Standard 745 ultrasonic welder, 900 watt, 35 kHz
745 actuator, ADG35-900 generator, weld by distance, Branson base & column, 230/1/60, new 2011
50#
used Branson VW-4H Hy-Line vibration welder (98R367177)
50# upper tool weight, 34″ x 21″ hydraulic lift table, light curtain, finger actuators, part eject, vacuum, 10 hp Commander drive, clean welder, January 2022 control retrofit scheduled
45.3 hp
Vectron 45.3 hp (33.8 kW) frequency inverter, 04020549
Branson Ultraschall 400-060 vibration drive, input 400/480 volt 3 phase, output: 0-480 volt (also Vectron 42 kVA & 52 kVA frequency inverters)
17.4 hp
Vectron BRA 400-025 BF1 frequency inverter (06070332)
Branson VW-6 vibration welder frequency drive (inverter), 17.4 hp, 12.7 kW (ac), 400/480V input, 0-480V output, new 2006, appears excellent
23.4 hp
Vectron BRA 400-034 BF1 frequency inverter (04040018)
Branson VW-6 vibration welder frequency drive (inverter), 23.4 hp, 17.4 kW (ac), 400/480V input, 0-480V output, very clean, 2021-6-7 powered video
23.4 hp
Vectron BRA 400-034 BF1 frequency inverter (04040024)
Branson VW-6 vibration welder frequency drive (inverter), 23.4 hp, 17.4 kW (ac), 400/480V input, 0-480V output, new 2004, 2021-6-7 powered video
33.6 hp
Vectron BRA 400-045 BF2 frequency inverter (03080637)
used frequency inveter or vibration drive for sale 33.6 hp Bonfiglioli Vectron vibration drive fits Branson M622H vibration welder input: 480/3/60, 45 amp outpout: 33.6 hp, 0-400 Hz, 0-480V 3 […]
vibration welder – lamination carriers & springs
for Branson VW-4 for Branson VW-6 for Branson VW-8 for Vinton LVW-7s
unkown
Vinton (Branson) LVW-7SA vibration welder
38” x 19” lift table, Moog valve (hydronamic drive), new 1993, Allen Bradley SLC5/04 PLC & Panelview 1000 interface, complete rebuild in 2001, stored since 2008
