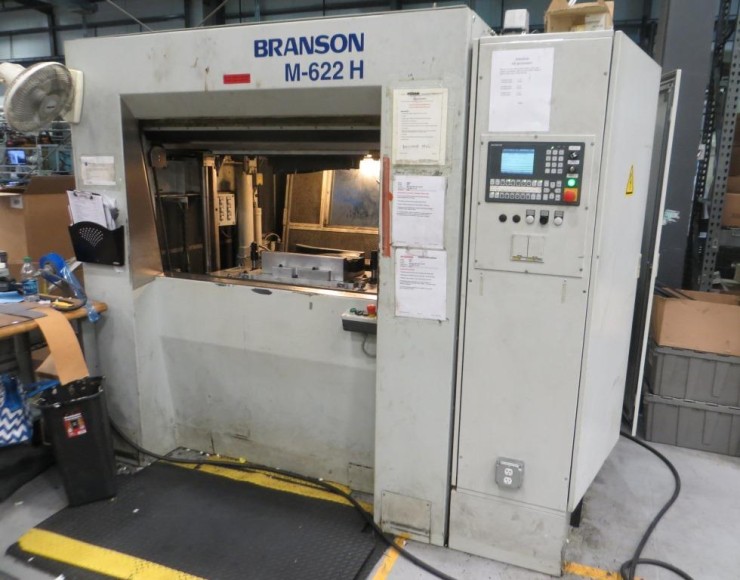

Branson M-622H vibration welder, 2003

used vibration welder for sale
52” x 21” hydraulic lift table
500 cm2 welding surface
77# – 143# upper tool weight

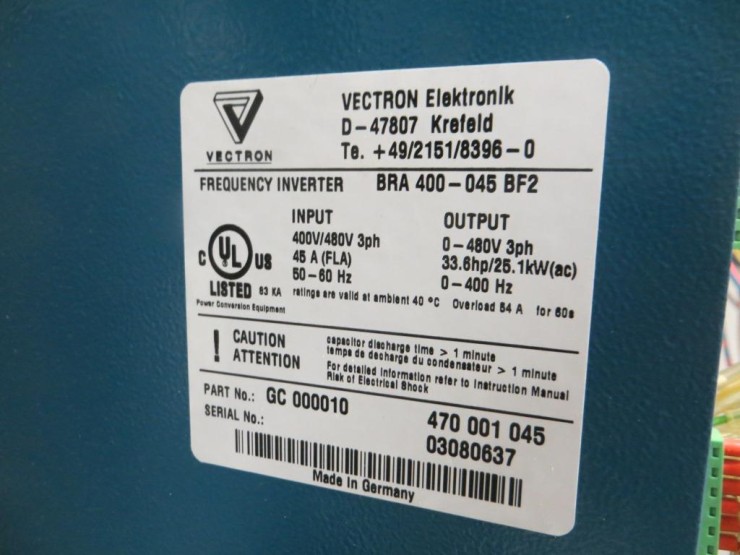

33.6 hp Vectron frequency inverter
80 – 120 Hz (low frequency)
20” lift table stroke, variable to 10”/second
29-1/2” daylight (without fixture plates)

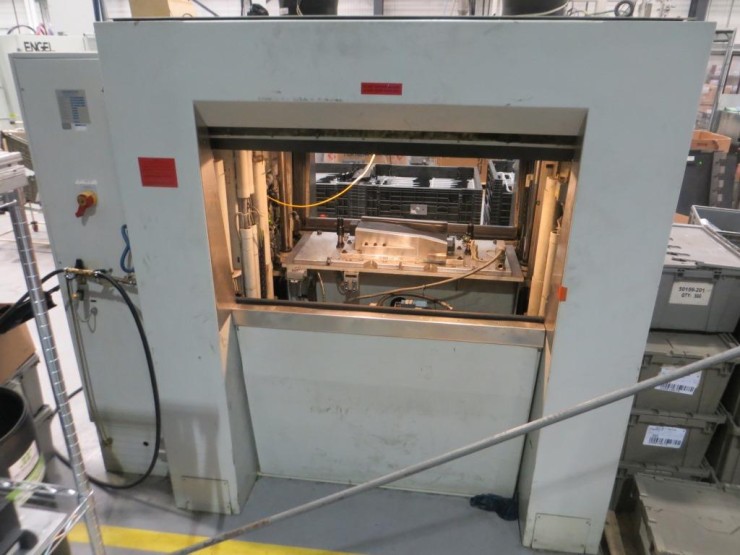

front/rear operator access (pass through)

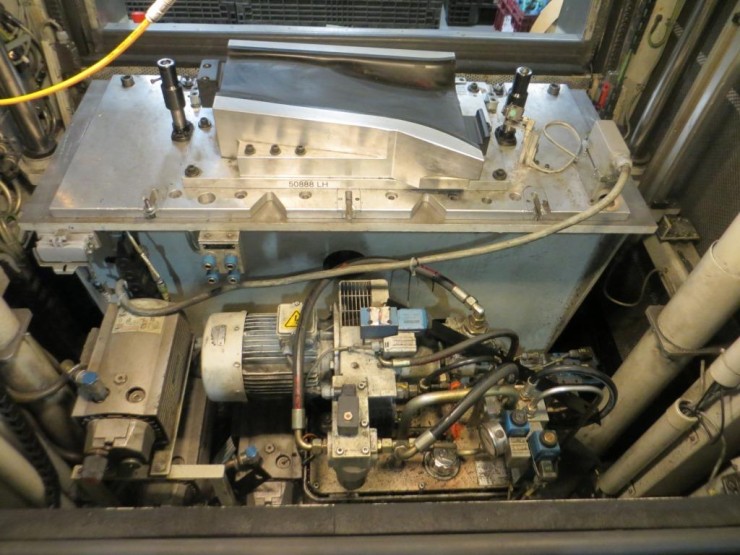

rear service access, pump under table
Siemens Simatic S7-300 PLC

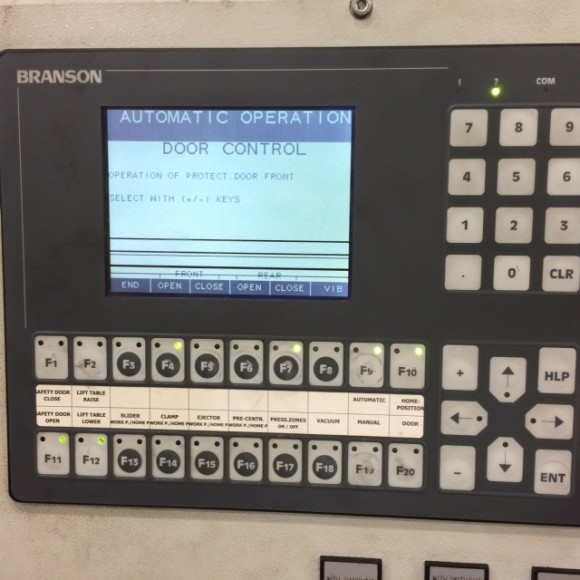

Allen Bradley Panelview 700 Plus interface
Branson M2 software
9’3” x 5’8” x 7’5” high (plus light curtain)
12,000# weight
CE stamped

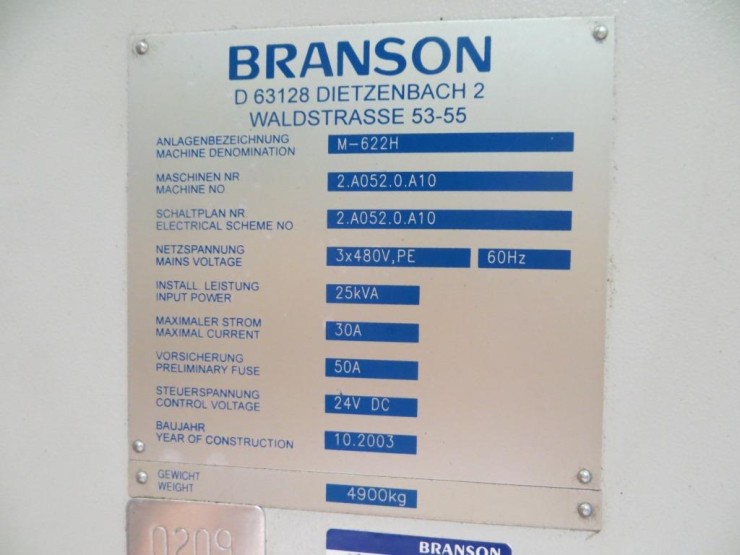

s/n – 2.A052.0.A10
