This machine is no longer in stock. Let us know your requirements or if you have surplus.

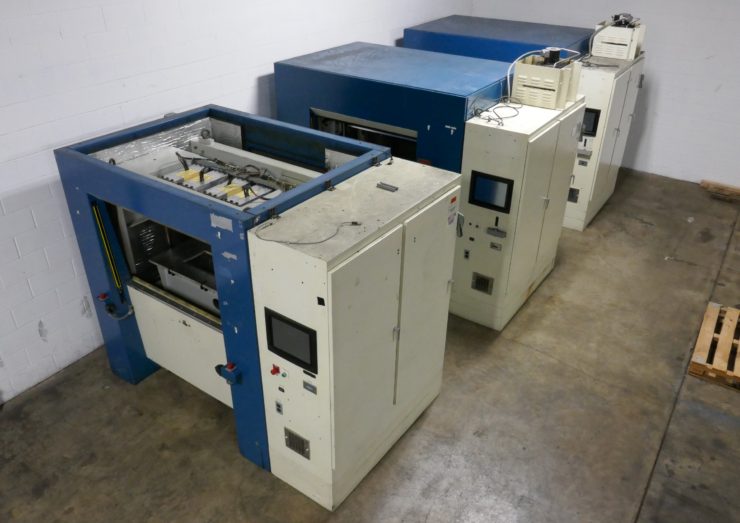

used vibration welder for sale
52” x 21” hydraulic lift table (1330 x 540 mm)
36″ x 21.25″ vibration drive
500 cm2 welding surface
77# – 143# upper tool weight

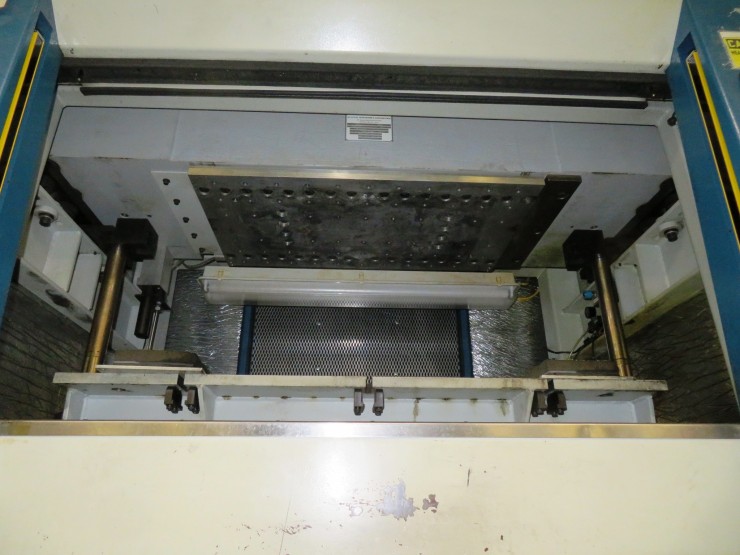

30 KW weld head, M6 center drive coils
45.3 hp frequency inverter (2-phase digital)
180 – 240 Hz frequency range
20” lift table stroke, variable to 10”/second
29-1/2” daylight (without fixture plates)
25 kN clamp force
AB Compactlogix L24ER PLC
16 inputs and outputs
9″ Allen Bradley Panelview Plus 7 HMI
user friendly control screens
ethernet Temposonic rod
480/3/60
9’3” x 5’8” x 7’5” high (plus light curtain)
9000# weight
new 2002, 10/17 control retrofit
