This machine is no longer in stock. Let us know your requirements or if you have surplus.

used vibration welder for sale
52” x 21” hydraulic lift table (1330 x 540 mm)
36″ x 21.25″ vibration drive
500 cm2 welding surface
143# upper tool weight
30 KW weld head, M6 center drive coils
45.3 hp frequency inverter (2-phase digital)
180 – 240 Hz frequency range
20” lift table stroke, variable to 10”/second
29-1/2” daylight (without fixture plates)
25 kN clamp force
AB Compactologix L24ER PLC
16 inputs and outputs
AB Panelview Plus 7 interface
user friendly control screens
ethernet Temposonic rod
hydraulic oil cooler
480/3/60
9’3” x 5’8” x 8’5” high
10,000# weight
new 2004, 10/2017 control retrofit (see videos)

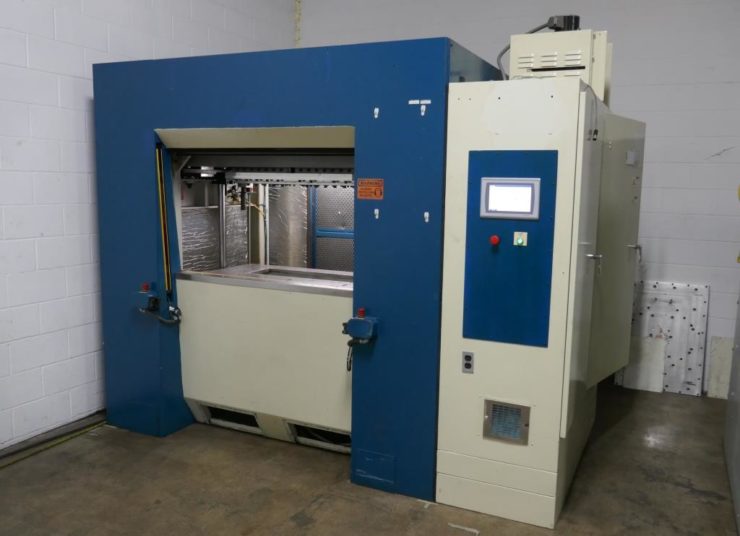

Branson M624H vibration welder, s/n – 04R523558-3 Branson M624H vibration welder, s/n – 04R523558-3
