This machine is no longer in stock. Let us know your requirements or if you have surplus.
35# – 90# upper tool weight
0.020″ – 0.070″ amplitude (0.5 – 1.8 mm)
200 – 240 Hz frequency range
30″ x 18″ upper tool size
38″ x 18″ lift table & tool size
20″ lift table stroke
20 kN (4500#) clamp force
auto tune
weld by time or distance
programmable amplitide & presure profiles

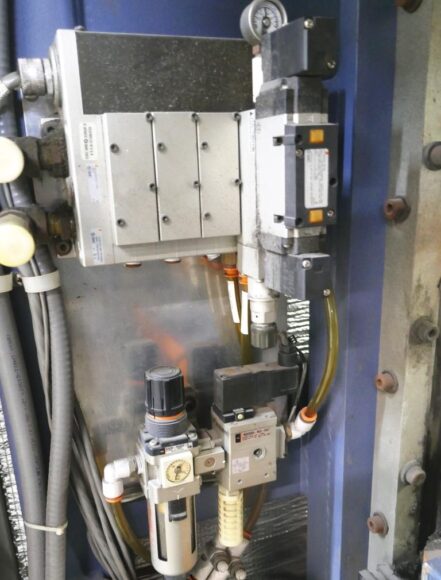

pneumatic manifold (supports 2 additional valves)
programming for tool id, vacuum
Allen Bradley 1336 Plus II 15 hp vibration drive
Allen Bradley PLC
Allen Bradley Panelview 600 HMI
light curtain, finger actuators
upper & lower tools
41″ lift table height (above floor)
air filter/regulator/lubricator (inside enclosure)
interior work light
29,002 total machine cycles, 1066 production hours
480/3/60 electrics
